McLeod Clutches

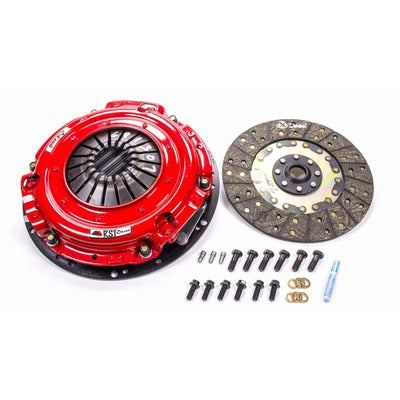

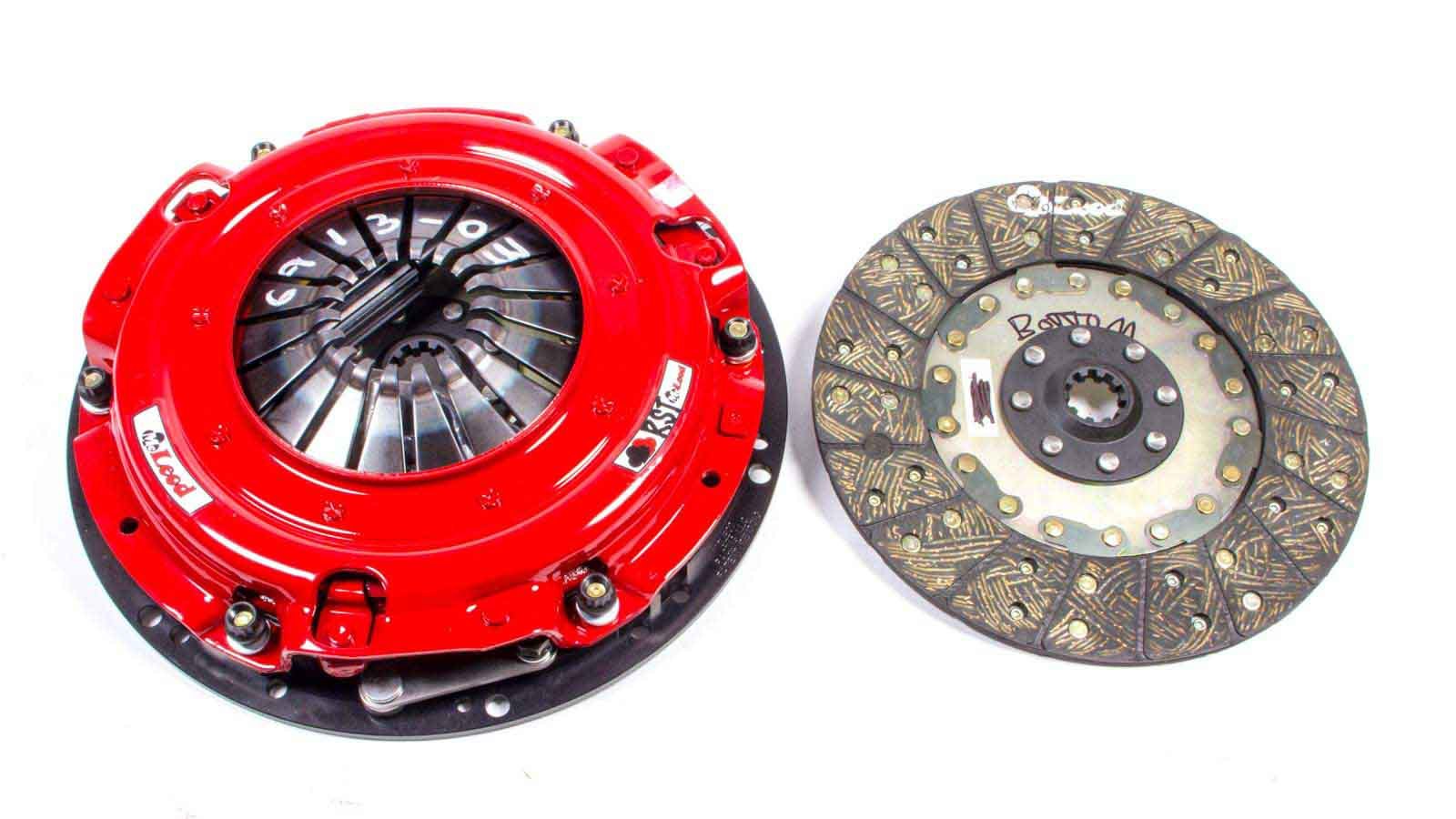

McLeod RST Street Twin Clutch Kit (800HP)
McLeod RST Street Twin Clutch Kit (800HP)
Regular price
$1,097.00 CAD
Regular price
Sale price
$1,097.00 CAD
Unit price
/
per
No reviews
Couldn't load pickup availability
RST:9.687" Dia. Disc:For use with Small Diameter Flywheel:1-1/16x10.
Intended for the high horsepower street fan, the McLeod RST twin disc clutch kit is an economically priced twin disc clutch kit. Able to handle 800hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Organic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street only performance enthusiast. This unit is not intended for competition use! Look to our RXT and RXT 1200 for those applications.
RST:9.687" Dia. Disc:For use with Small Diameter Flywheel:1-1/16x10. (10 Spline)
Specifications
| Make | Ford |
|---|---|
| Application | RST,Small Black Adapter Ring |
| Pressure Plate Pattern | 10.5" Borg & Beck |
| Pressure Plattern 2 | 10.5" Ford Long |
| Pressure Plattern 3 | |
| 10.5" - 86-Up Mustang Diaphragm with dowel pins. | Spline |
| 1-1/16 x 10 | Pressure Plate Style |
| Diaphragm | Disc Dia. |
| 9.687" Dia. | Torque Capacity at the Crank |
| 800 Ft Lbs. | Flywheel Included |
| No |
RST:9.687" Dia. Disc:For use with Small Diameter Flywheel:1-1/8x26. (26 Spline)
Specifications
| Make | GM,Ford,Mopar |
|---|---|
| Application | RST,Small Black Adapter Ring |
| Pressure Plate Pattern | 10.5" Borg & Beck |
| Pressure Plattern 2 | 10.5" Ford Long |
| Pressure Plattern 3 | |
| 10.5" - 86-Up Mustang Diaphragm with dowel pins. | Spline |
| 1-1/8 x 26 | Pressure Plate Style |
| Diaphragm | Disc Dia. |
| 9.687" Dia. | Torque Capacity at the Crank |
| 800 Ft Lbs. | Flywheel Included |
| No |
